Learning to adjust air fuel mixture screw settings correctly can make a noticeable difference in your motorcycle’s performance. If your bike idles roughly, struggles to start, or hesitates during acceleration, an incorrect air-fuel mixture could be the cause. Instead of spending money on unnecessary repairs, you can often solve these problems with a simple adjustment. In this guide, you’ll learn how to adjust air fuel mixture screw settings safely, recognize the signs of an incorrect mixture, and fine-tune your engine for smoother performance, better fuel efficiency, and improved reliability.
Quick Answer
If you’re wondering how to adjust an air fuel mixture screw, the process is simpler than it sounds. Start by warming up the engine, then locate the air-fuel mixture screw on the carburetor. Turn the screw slowly clockwise and counterclockwise in small increments until the engine reaches the smoothest idle. Fine-tuning the mixture improves engine performance, fuel efficiency, throttle response, and overall reliability.
Signs Your Air-Fuel Mixture Needs Adjustment
Not sure if your air-fuel mixture needs adjusting? Your engine will usually show a few warning signs. If you notice any of the following problems, it may be time to adjust the air-fuel mixture screw:
- Rough or uneven idle
- Hard starting, especially when the engine is cold
- Poor throttle response or hesitation during acceleration
- Increased fuel consumption
- Black smoke from the exhaust (rich mixture)
- Engine overheating or backfiring (lean mixture)
- Loss of power while riding
Ignoring these symptoms can reduce engine performance and lead to unnecessary wear over time. Adjusting the air-fuel mixture at the right time helps keep your engine running smoothly and efficiently.
Safety Tips Before You Start
Before adjusting the air-fuel mixture screw, make sure you follow a few basic safety precautions. Work in a well-ventilated area, wear safety gloves and eye protection, and keep the motorcycle away from open flames or sparks. If you’ve been riding, allow the engine to cool slightly before touching hot components. These simple precautions can help prevent injuries and make the adjustment process safer.
Understanding the Air-Fuel Mixture
The air-fuel mixture is the blend of air and fuel that is drawn into the combustion chamber of an engine. This mixture is crucial for the combustion process, as it determines how efficiently the engine operates.
If the mixture is too lean (not enough fuel), the engine may run hot, potentially leading to damage. Conversely, if it is too rich (too much fuel), it can lead to incomplete combustion, resulting in wasted fuel and increased emissions.
Understanding how to balance this mixture is key to ensuring optimal engine performance.
What is the Air-Fuel Ratio?
The air-fuel ratio (AFR) is a measurement of the mass of air compared to the mass of fuel in the combustion process. The ideal ratio for most gasoline engines is approximately 14.7:1, meaning 14.7 parts of air to 1 part of fuel.
This ratio ensures complete combustion, maximizing power output while minimizing emissions. Deviations from this ratio can significantly affect engine performance, efficiency, and longevity.
Effects of Lean vs. Rich Mixtures
| Mixture Type | Description | Effects |
|---|---|---|
| Lean Mixture | More air than fuel | Higher engine temperatures, potential overheating, knocking, and engine damage. |
| Rich Mixture | More fuel than air | Increased fuel consumption, lower power output, rough idling, and higher emissions. |
The table above illustrates the contrasting effects of lean and rich mixtures on engine performance. Maintaining the correct air-fuel ratio is essential for ensuring smooth operation and avoiding potential damage to the engine.
A lean mixture can lead to overheating, while a rich mixture results in wasted fuel and increased emissions.
Ideal Air-Fuel Ratio for Different Engines
Different types of engines have varying ideal air-fuel ratios. For example, gasoline engines typically operate best around 14.7:1, whereas diesel engines may run at a much lower ratio, often around 18:1 or higher.
Understanding these differences is crucial when making adjustments to the air-fuel mixture screw to enhance engine performance.
Tools Needed for Adjustment
Before making any adjustments to the air-fuel mixture screw, it’s essential to gather the necessary tools. Having the right equipment will ensure a smooth adjustment process and prevent any unintentional damage to the engine.
Flathead Screwdriver
A flathead screwdriver is the primary tool needed to adjust the air-fuel mixture screw. It allows you to turn the screw accurately without damaging it.
Ensure the screwdriver fits snugly in the screw head to avoid stripping.
Vacuum Gauge
A vacuum gauge can provide valuable feedback when adjusting the air-fuel mixture. It measures the engine’s intake vacuum and helps identify the optimal mixture by indicating changes in engine performance as adjustments are made.
Safety Gear
Always wear appropriate safety gear, including gloves and goggles, when working on an engine. This ensures your protection from any potential hazards, such as hot engine parts or fuel spills.
Additionally, it is crucial to warm up the engine before making adjustments. A warm engine provides more accurate readings and allows for better performance evaluation as you make changes.
Accessing the Air-Fuel Mixture Screw
Locating and accessing the air-fuel mixture screw can vary depending on the type of engine you are working with. Below are the steps to find and prepare for the adjustment.

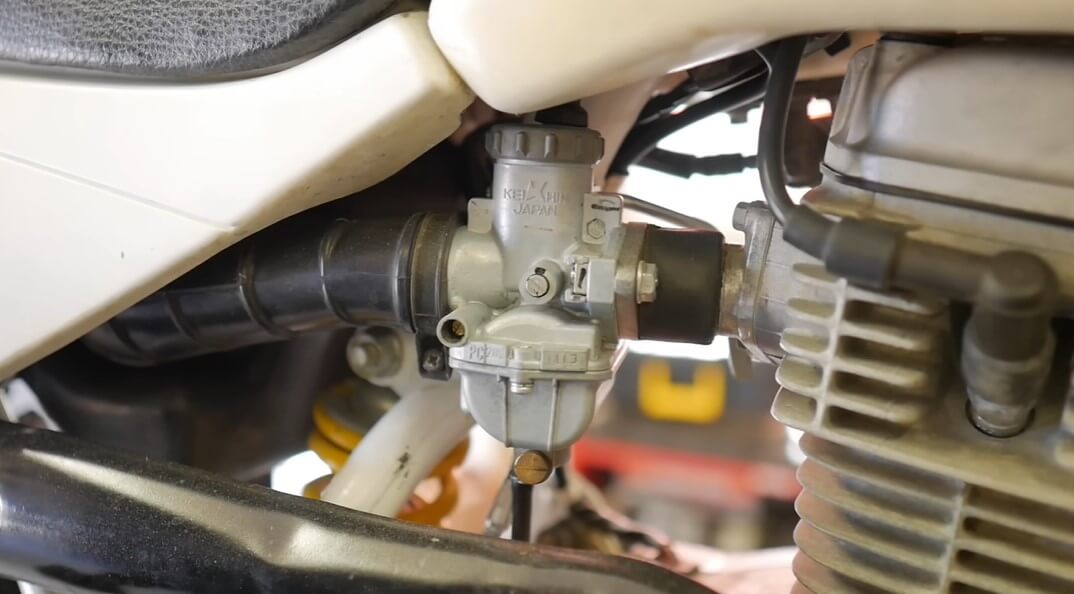

Locating the Carburetor
The carburetor is typically located near the engine, connected to the air filter. It is essential to identify the correct carburetor for your engine type, whether it’s a motorcycle, car, or ATV.
Identifying the Mixture Screw
Most air-fuel mixture screws are brass and have a flat head. They are often located on the side of the carburetor, but this can vary.
Look for a screw that appears different from others, as it will typically be designed for adjustment purposes.
Pre-Adjustment Checks
| Check | Description |
|---|---|
| Engine Temperature | Ensure the engine is at normal operating temperature for accurate adjustments. |
| Idle Speed | Check the idle speed and make sure it is within the recommended range (usually around 800-1000 RPM). |
| Fuel Quality | Use fresh fuel to prevent any performance issues related to stale or contaminated fuel. |
Conducting these pre-adjustment checks will help ensure that the adjustments you make to the air-fuel mixture screw will yield the best possible results. A warm engine, correct idle speed, and good fuel quality are critical for successful adjustments.
Step-by-Step Adjustment Process
Once you have located the air-fuel mixture screw and gathered your tools, you can proceed with the adjustment process. Follow these detailed steps for optimal results.
Warming Up the Engine
Start by running the engine for about five minutes to allow it to reach its normal operating temperature. This step is critical because the engine’s performance characteristics change with temperature, and adjustments should be made under these conditions.

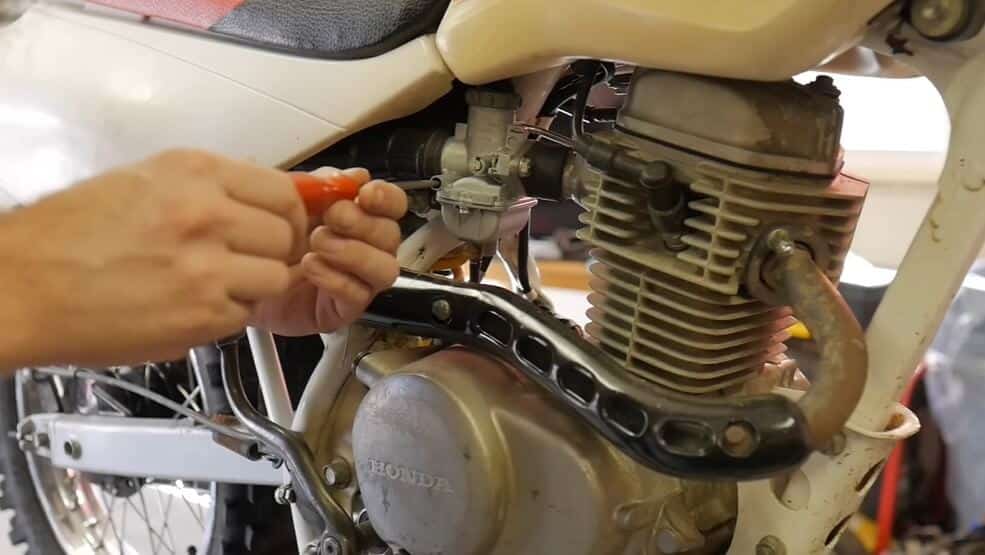

Adjusting the Screw Clockwise and Counterclockwise
Using your flathead screwdriver, begin by turning the screw clockwise until the engine starts to sound rough. This indicates that you are leaning out the mixture.
Note this position, as you will need it for fine-tuning later. Next, loosen the screw by turning it counterclockwise until the engine again sounds irregular.
This indicates a richer mixture.
Fine-Tuning for Optimal Performance
After identifying both rough spots, return the screw to a position approximately halfway between the two noted points. This is where the engine should ideally be running smoothly.
To find the perfect setting, make small adjustments of about 1/2 turn in either direction and listen carefully to the engine’s response. The goal is to achieve the smoothest and most even idle.
| Adjustment Step | Action | Expected Outcome |
|---|---|---|
| Clockwise | Turn the screw until the engine sounds rough. | Engine running leaner. |
| Counterclockwise | Turn the screw until the engine sounds irregular. | Engine running richer. |
| Middle Position | Set the screw midway between rough and irregular. | Engine idles smoothly. |
This table summarizes the steps taken to adjust the air-fuel mixture screw effectively. By understanding the expected outcomes, you can better gauge how your adjustments affect engine performance.
Common Mistakes When Adjusting an Air-Fuel Mixture Screw
Even a small mistake can affect engine performance. Avoid these common errors when adjusting the air-fuel mixture screw:
- Adjusting the screw before the engine reaches normal operating temperature.
- Turning the screw too much instead of making small ¼-turn adjustments.
- Ignoring the recommended idle speed while tuning the mixture.
- Trying to adjust the mixture without cleaning a dirty carburetor first.
- Using old or contaminated fuel during the adjustment process.
- Overtightening the mixture screw, which can damage the carburetor.
- Making adjustments without testing the engine after each change.
Taking your time and making small, careful adjustments will help you achieve the best air-fuel mixture and improve your engine’s overall performance.
Common Issues and Troubleshooting
Even with careful adjustments, problems can still arise. Below are some common issues you might encounter and how to address them effectively.
Engine Won’t Start After Adjustment
If the engine fails to start following your adjustments, it could indicate that the mixture is too lean or too rich. Return the air-fuel mixture screw to its original position (typically 1.5 to 2.5 turns from seated) and attempt to start the engine again.
If it starts, gradually adjust from this baseline to find the optimal setting.
Rough Idling or Stalling
Rough idling can be a sign of an improperly adjusted mixture. If the engine stalls or idles roughly after adjustments, try turning the screw out (counterclockwise) to enrich the mixture.
Monitor the engine’s performance and adjust until the idle smooths out.
Excessive Fuel Consumption
If you notice a significant increase in fuel consumption, the mixture may be too rich. Adjust the air-fuel mixture screw in (clockwise) to lean out the mixture slightly.
This adjustment should help reduce fuel usage while maintaining performance.
| Issue | Possible Cause | Solution |
|---|---|---|
| Engine Won’t Start | Incorrect mixture setting | Return to original screw position, then adjust from there. |
| Rough Idling | Mixture too lean or too rich | Adjust the screw out or in to find the smooth idle. |
| Excessive Fuel Consumption | Mixture too rich | Turn the screw in to lean out the mixture. |
This table highlights common issues, their potential causes, and solutions. By following these guidelines, you can troubleshoot effectively and enhance your engine’s performance.
Understanding Engine Feedback
Listening to your engine is an important aspect of successful air-fuel mixture adjustments. By interpreting engine feedback, you can gauge the effectiveness of your adjustments.
Listening for Idle Changes
Pay attention to how the engine sounds during idle. A smooth and steady idle indicates a well-balanced air-fuel mixture.
If you hear inconsistent revs or stalling, further adjustments may be needed.
Monitoring Exhaust Emissions
| Emission Type | Indication |
|---|---|
| Black Smoke | Rich mixture |
| White Smoke | Possible coolant leak |
| No Smoke | Proper mixture |
The emissions table provides insight into what different types of smoke indicate about your engine’s performance. Black smoke typically signals a rich mixture, while a lack of smoke generally suggests an optimal air-fuel ratio.
Using a Vacuum Gauge for Feedback
Utilizing a vacuum gauge during adjustments can provide precise feedback on engine performance. Ideal vacuum readings during idle should be in the range of 18-22 inches of mercury (inHg).
Deviations from this range may indicate the need for further adjustments to the air-fuel mixture.
Importance of Regular Maintenance
Regular maintenance of the air-fuel mixture is essential for ensuring long-term engine performance and efficiency. Neglecting this aspect can lead to various issues that affect both performance and emissions.
Frequency of Adjustments
It is advisable to check and adjust the air-fuel mixture screw at regular intervals, particularly before and after significant changes, such as seasonal temperature shifts or after extensive riding. Regular checks help maintain optimal performance and fuel efficiency.
Signs of Wear and Tear
| Signs | Indication |
|---|---|
| Difficulty Starting | Possible rich or lean mixture |
| Excessive Emissions | Misadjusted air-fuel mixture |
| Unusual Engine Noises | Potential engine damage or misfiring |
This maintenance table outlines common signs of wear and tear that may require immediate attention. Addressing these signs promptly can help prevent more significant engine issues in the future.
Seasonal Adjustments
Seasonal changes can impact engine performance, particularly in regions with extreme temperature variations. Ensuring that the air-fuel mixture is adjusted to compensate for these changes can greatly improve engine reliability and efficiency.
FAQs About Adjust Air Fuel Mixture Screw
What happens if I adjust the air-fuel mixture screw too much?
Adjusting the air-fuel mixture screw too much can lead to engine performance issues, including rough idling, stalling, or difficulty starting. If the screw is turned too far in (lean), the engine may overheat or suffer damage.
Conversely, turning it out too much (rich) can lead to excessive fuel consumption and increased emissions. It is crucial to make gradual adjustments and monitor engine performance closely.
How can I tell if my engine is running too rich or too lean?
Symptoms of a rich-running engine include black smoke from the exhaust, a strong fuel smell, and poor fuel economy. Conversely, a lean engine may exhibit backfiring, overheating, and difficulty starting.
Regular monitoring of engine performance and emissions can help identify these issues early, allowing for timely adjustments to the air-fuel mixture.
Do I need special tools to adjust the air-fuel mixture screw?
While a flathead screwdriver is essential for adjusting the air-fuel mixture screw, having a vacuum gauge can significantly aid in tuning the mixture more precisely. Safety gear, such as gloves and goggles, is also recommended to protect against potential hazards while working on the engine.
How often should I check my air-fuel mixture screw?
It is advisable to check the air-fuel mixture screw at regular intervals, especially before and after significant seasonal changes, or after extensive use. Regular checks help ensure optimal engine performance and prevent issues related to improper air-fuel mixture settings.
Conclusion
Learning how to adjust air fuel mixture screw settings is a simple but valuable skill that can improve your motorcycle’s performance and help prevent common engine problems. By making small, careful adjustments and paying attention to how your engine responds, you can achieve smoother idling, better throttle response, improved fuel efficiency, and more reliable performance. Remember to warm up the engine before making adjustments and avoid overcorrecting the mixture screw. With regular maintenance and the correct air-fuel settings, your motorcycle will run more efficiently, last longer, and deliver a smoother, more enjoyable ride every time.
